Introducing HUZZ Electronic
Access Control
Huzz Electro Magnetic Locks adopt International Leading Production Equipment and Packaging Technology, which not only makes our Locks antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher than other manufacturers)
Huzz Locks offer cost effective solution with easy installation and suitable for variety of application
Our Locks have been sold across the globe and widely used in the verticals like Residential, Hotels, Banks, Towers and so on.

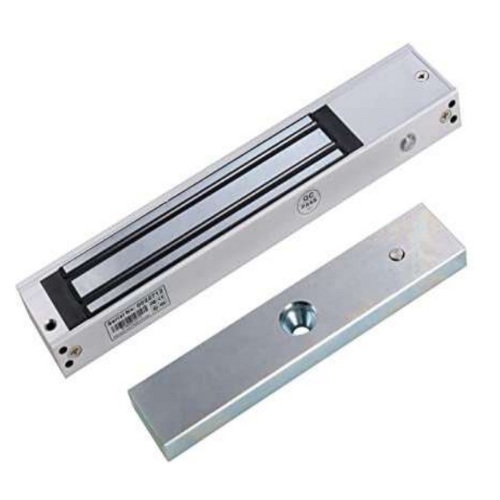

Electromagnetic Locks - HZ-280 (A / AS/ ADS)
The HZ-280 Series is a full size 600lbs. holding force Standard / Monitored Electromagnetic Lock for Single Leaf Door.
Specifications:
- Holding force – 600lbs.
- Magnetic Bond Sensor with LED
-
Magnetic Bond Sensor and Door Status Monitor with LED
- Input voltage - 12/24VDC field selectable
- Current draw - 0.48A@12VDC; 0.24A@24VDC.
- Dimensions - Lock body 250x47x26mm / Armature plate 180x38x11mm
- Optional Mounting kits available for Inswing and Out swing Doors
- Weight 4.40lbs.
UL Listings
- UL 10C- Positive Pressure of Fire Test of Door Assemblies
- UL 10B- Fire Tests of Door Assemblies
- UL 1034- Burglary Resistant Electric Locking Mechanisms
- ULC-S104- Method for Fire Tests of Door Assemblies
Usage/Features
- Single Electromagnetic Lock HZ-280AS with 600lbs holding force.
- Easy to select and easy to install for Single Leaf Door Application, both Indoor/Outdoor security.
- Variety of installation brackets available to adapt all kind of doors and door frames.
- Built in reverse current protection device(MOV) Shell is made of high strength Aluminum Alloy Field Selectable 12/24 VDC
Electromagnetic Locks - HZ-500 (A / AS/ ADS)
The HZ-500 Series is a full size 1200lbs. holding force Standard / Monitored Electromagnetic Lock for Single Leaf Door.
Specifications:
- Holding force – 1200lbs.
- Magnetic Bond Sensor with LED
-
Magnetic Bond Sensor and Door Status Monitor with LED
- Input voltage - 12/24VDC field selectable
- Current draw - 0.6A@12VDC; 0.3A@24VDC.
- Dimensions - Lock body 265x71x40mm / Armature plate 185x60x13mm
- Optional Mounting kits available for Inswing and Out swing Doors
- Weight 9.92lbs.
UL Listings
- UL 10C- Positive Pressure of Fire Test of Door Assemblies
- UL 10B- Fire Tests of Door Assemblies
- UL 1034- Burglary Resistant Electric Locking Mechanisms
- ULC-S104- Method for Fire Tests of Door Assemblies
Usage/Features
- Single Electromagnetic Lock HZ-500A with 1200lbs holding force.
- Easy to select and easy to install for Single Leaf Door Application, both Indoor/Outdoor security.
- Variety of installation brackets available to adapt all kind of doors and door frames.
- Built in reverse current protection device(MOV) Shell is made of high strength Aluminum Alloy Field Selectable 12/24 VDC

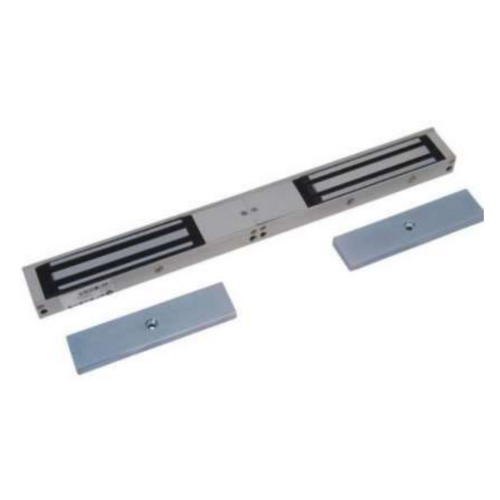

Electromagnetic Locks - HZ-280 (B / BS/ BDS)
The HZ-280 Series is a full size 600lbs. holding force Standard / Monitored Electromagnetic Lock for Double Leaf Door.
Specifications:
- Holding force – 600lbs.
- Magnetic Bond Sensor with LED
-
Magnetic Bond Sensor and Door Status Monitor with LED
- Input voltage - 12/24VDC field selectable
- Current draw - 0.48A@12VDC*2; 0.24A@24VDC*2.
- Dimensions - Lock body 500x47x26mm / Armature plate 180x38x11mm
- Optional Mounting kits available for Inswing and Out swing Doors
- Weight 8.81lbs.
UL Listings
- UL 10C- Positive Pressure of Fire Test of Door Assemblies
- UL 10B- Fire Tests of Door Assemblies
- UL 1034- Burglary Resistant Electric Locking Mechanisms
- ULC-S104- Method for Fire Tests of Door Assemblies
Usage/Features
- Single Electromagnetic Lock HZ-280B with 600lbs holding force.
- Easy to select and easy to install for Single Leaf Door Application, both Indoor/Outdoor security.
- Variety of installation brackets available to adapt all kind of doors and door frames.
- Built in reverse current protection device(MOV) Shell is made of high strength Aluminum Alloy Field Selectable 12/24 VDC
Electromagnetic Locks - HZ-500 (B / BS/ BDS)
The HZ-500 Series is a full size 1200lbs. holding force Standard / Monitored Electromagnetic Lock for Double Leaf Door.
Specifications:
- Holding force – 1200lbs.
- Magnetic Bond Sensor with LED
-
Magnetic Bond Sensor and Door Status Monitor with LED
- Input voltage - 12/24VDC field selectable
- Current draw - 0.6A@12VDC*2; 0.3A@24VDC*2.
- Dimensions - Lock body 530x71x40mm / Armature plate 185x60x13mm
- Optional Mounting kits available for Inswing and Out swing Doors
- Weight 19.95lbs.
UL Listings
- UL 10C- Positive Pressure of Fire Test of Door Assemblies
- UL 10B- Fire Tests of Door Assemblies
- UL 1034- Burglary Resistant Electric Locking Mechanisms
- ULC-S104- Method for Fire Tests of Door Assemblies
Usage/Features
- Single Electromagnetic Lock HZ-500B with 1200lbs holding force.
- Easy to select and easy to install for Single Leaf Door Application, both Indoor/Outdoor security.
- Variety of installation brackets available to adapt all kind of doors and door frames.
- Built in reverse current protection device(MOV) Shell is made of high strength Aluminum Alloy Field Selectable 12/24 VDC

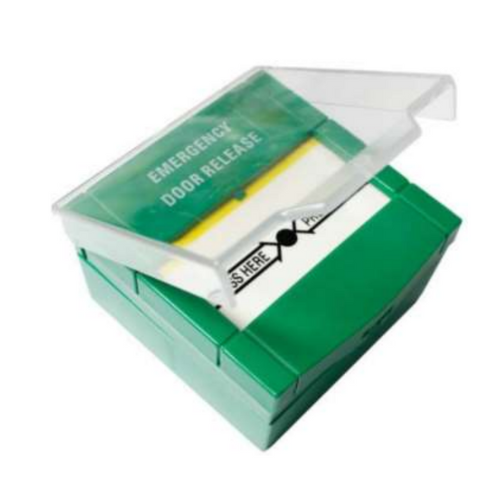

Emergency Break Glass-Resettable
The HZ-923 Resettable Door Release is to override electrical locking and activate the release of devices when there is an emergency. The Reset Key can be used to restart the device.
Specifications:
- Visible Green Design.
- Clear Cover to Prevent Accidental Use.
- Clear Readable Text(English).
- Double Pole Switch.
- Surface Mounted
- Single Gang Size(88mm)
- Rating: 3A @ 36VDC
- Operating Temperature: -30 Deg C to 60 Deg C
- Dimension: 86 X 86 X 50 (mm)

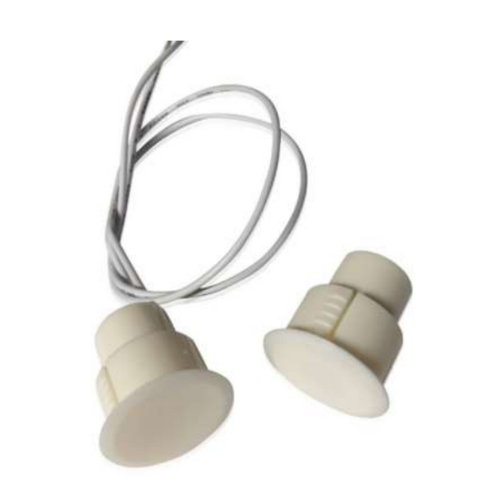

Door Position Switch- Concealed
The Concealed Type Door Contact- HZ-DC102, are used to monitor the open and closed
status of an opening/closing of the door and signal will be send back to Control Panel to
control the action.
Specifications:
- Operating Gap: 20 mm.
- Color: White.
- Suitable Door: Wooden, Aluminum and Hollow Metal Door.
- Max Switching Current: 0.5A.
- Material: ABS
- Concealed

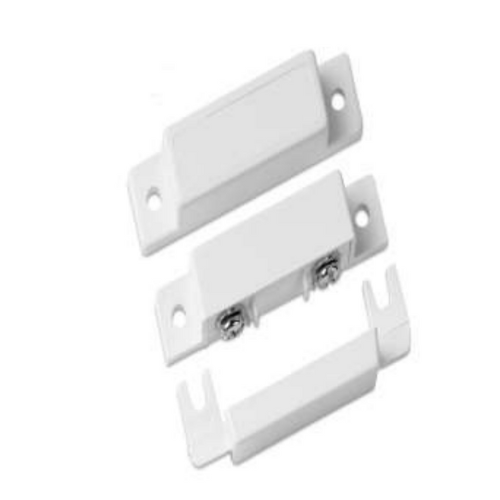

Door Position Switch- Surface Mount
HZ-DC101- Door Position Switch
The Surface Mount Door Contact- HZ-DC101, are used to monitor the open and closed
status of an opening/closing of the door and signal will be send back to Control Panel to
control the action.
Specifications:
- Operating Gap: 20 mm.
- Color: White.
- Suitable Door: Wooden, Aluminum and Hollow Metal Door.
- Max Switching Current: 0.5A.
- Material: ABS
- Surface Mount
HZ-911 Stainless Steel Push Button
The HZ-911 Exit Push Button are used to control the ingress or egress of a door. Huzz Push Buttons are designed to meet commercial applications. Use with indoor swinging or sliding doors that are electrically locked. Push Buttons are available for single gang.
Specifications:
- Holding force – 600lbs.
- Single Gang Exit Switch.
- Screen Printed “ PRESS TO EXIT”.
- Satin Stainless Steel Finish.
- Size: 86 X 86 X 24 (mm).
- Professional Circuit Design, NO Mechanical Failure
- Elegance Appearance Design, Beautiful and Easy

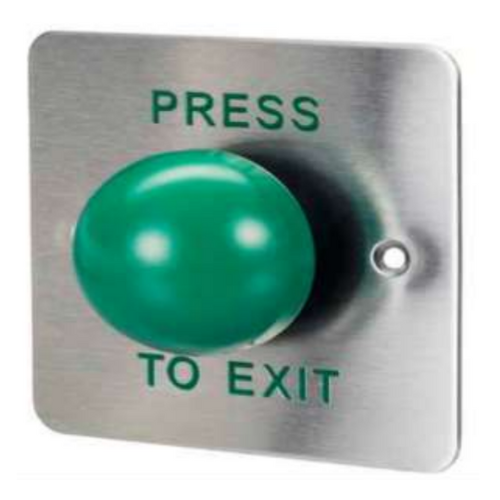

HZ-915 Stainless Steel Push Button-Domed Style
The HZ-915 Exit Push Button are used to control the ingress or egress of a door. Huzz Push Buttons are designed to meet commercial applications. Use with indoor swinging or sliding doors that are electrically locked. Push Buttons are available for single gang
Specifications:
- Flush Mounted with Green Plastic Domed Button.
- Screen Printed “ PRESS TO EXIT”.
- Satin Stainless Steel Finish.
- Size: 86 X 86 X 24 (mm).
- Professional Circuit Design, NO Mechanical Failure
- Elegance Appearance Design, Beautiful and Easy

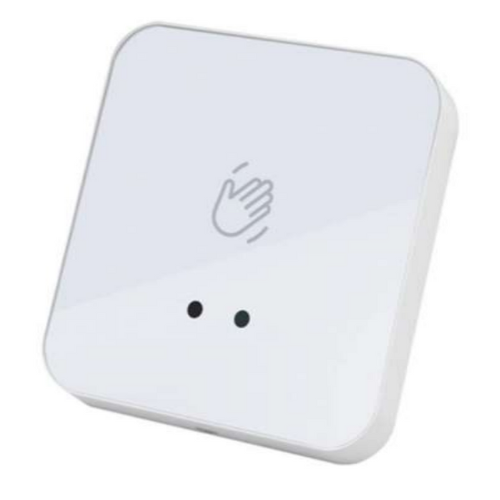

HZ-908 Touchless Push Button
The HZ-908 No Touch Push Button are used to control the ingress or egress of a door. Huzz Push Buttons are designed to meet commercial applications. Use with indoor swinging or sliding doors that are electrically locked. Push Buttons are available for single gang
Specifications:
- Uses Infra Red Sensor Technology for Contact less Switch Activation
- For Sanitary Environment such as Hospitals, Restaurants, Bathrooms or labs
- Operating Voltage: 12 VDC.
- Size: 86 X 86 X 29 (mm).
- ANSI Size
- Elegance Appearance Design, Beautiful and Eases.
HZ-909 Touchless Push Button
The HZ-909 No Touch Screw-less Push Button are used to control the ingress or egress of a door. Huzz Push Buttons are designed to meet commercial applications. Use with indoor swinging or sliding doors that are electrically locked. Push Buttons are available for single gang.
Specifications:
- Uses Infra Red Sensor Technology for Contact less Switch Activation
- 2 Color Indication
- For Sanitary Environment such as Hospitals, Restaurants, Bathrooms or labs
- Operating Voltage: 12 VDC.
- Size: 86 X 86 X 14 (mm).
- ANSI Size
- Elegance Appearance Design, Beautiful and Easy
- Available in White and Black Color

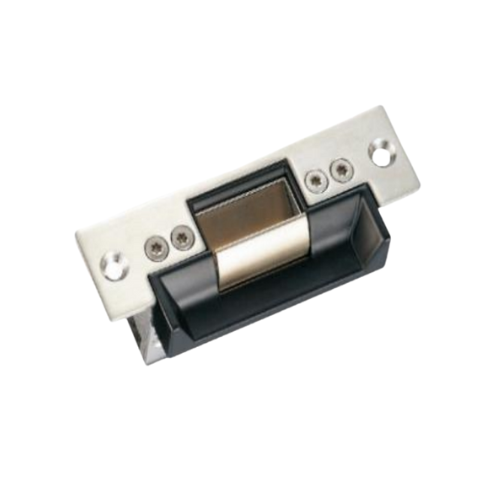

Electric strike- HZ-ES800
The HZ-ES800 Series is a Rim/Lock based Electric Strike with holding force of 800 KGS and designed with the customer in mind to be robust, easy to install and secure.
All HZ-ES800 Series Electric strike are designed to provide voltage selectable option for 12VDC and 24VDC. The Variety and flexibility of HZ-ES800 series Electric Strike is designed to lock your door electrically. Specify for commercial, industrial, residential or institutional openings where maximum security and durability is required with aesthetically superior appearance.
Specifications:
- Holding Strength-800 Kg
- Suitable for Wooden/Metal Door
- Field Selectable 12/24VDC.
- Operating Temperature: -10 Deg C to +25 Deg C
- CE Listed

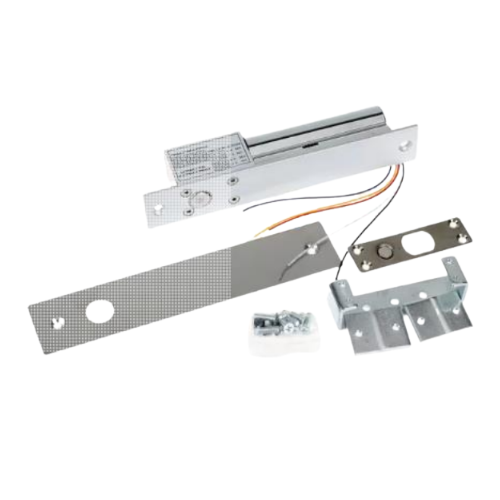

Electric strike- HZ-DB900
The HZ-DB900 Series is a Electric Drop Bolt designed with the customer in mind to be robust, easy to install and secure.
All HZ-DB900 Series Electric Drop Bolt are designed to provide voltage selectable option for 12VDC and 24VDC. The Variety and flexibility of HZ-DB900 series Electric Drop Bolt is designed to lock your door electrically. Specify for commercial, industrial, residential or institutional openings where maximum security and durability is required with aesthetically superior appearance. .
Specifications:
- Lock Body Size: 158X31x40(mm)
- Suitable for Wooden/Metal Door
- Monitor Sensor
- Field Selectable 12/24VDC.
- Operating Temperature: -10 Deg C to +25 Deg C
- CE Listed
Electromagnetic Locks - HZ-280 (A / AS/ ADS)
The HZ-280 Series is a full size 600lbs. holding force Standard / Monitored Electromagnetic Lock for Single Leaf Door.
Specifications:
- Holding force – 600lbs.
- Magnetic Bond Sensor with LED
-
Magnetic Bond Sensor and Door Status Monitor with LED
- Input voltage - 12/24VDC field selectable
- Current draw - 0.48A@12VDC; 0.24A@24VDC.
- Dimensions - Lock body 250x47x26mm / Armature plate 180x38x11mm
- Optional Mounting kits available for Inswing and Out swing Doors
- Weight 4.40lbs.
UL Listings
- UL 10C- Positive Pressure of Fire Test of Door Assemblies
- UL 10B- Fire Tests of Door Assemblies
- UL 1034- Burglary Resistant Electric Locking Mechanisms
- ULC-S104- Method for Fire Tests of Door Assemblies
Usage/Features
- Single Electromagnetic Lock HZ-280AS with 600lbs holding force.
- Easy to select and easy to install for Single Leaf Door Application, both Indoor/Outdoor security.
- Variety of installation brackets available to adapt all kind of doors and door frames.
- Built in reverse current protection device(MOV) Shell is made of high strength Aluminum Alloy Field Selectable 12/24 VDC
